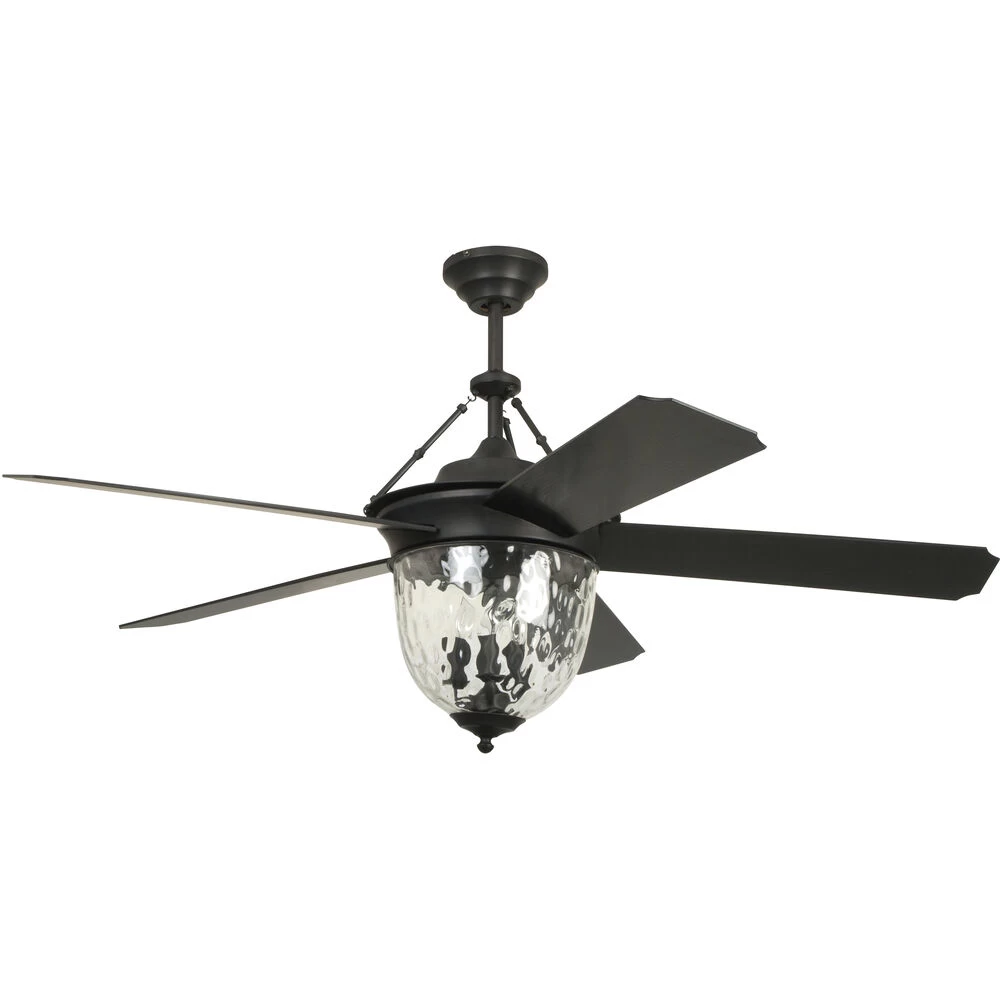

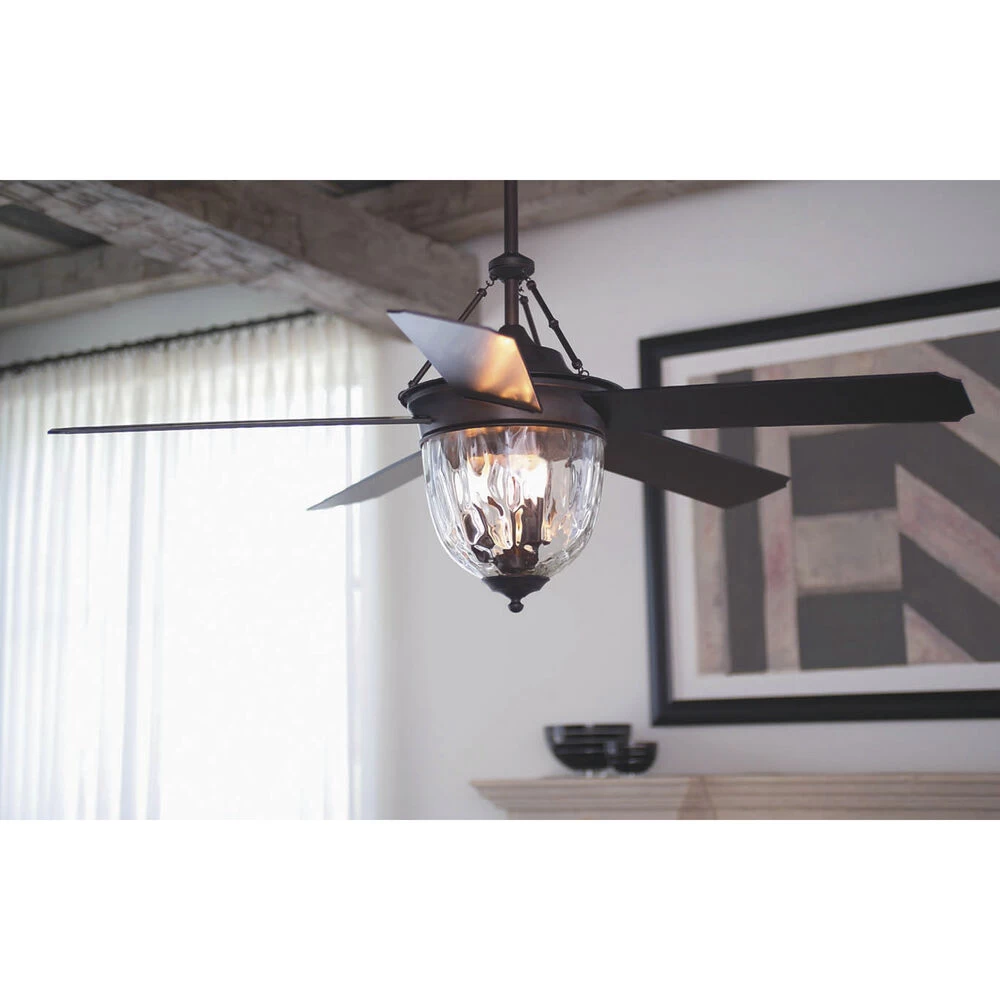

Elegant design and impeccable craftsmanship makes this an extraordinary ceiling fan. with a subtle nod to medieval art and metalwork, intricately shaped fan blades and the soft glow of its central candelabrum enclosed in clear hammered glass, Cavalier brings a touch of warmth and sophistication both indoors and out.
Brand
Craftmade
Category
Indoor Ceiling Fans
Collection
Cavalier
Finish
Antiqued
Color
Browns
Product Information
Brand:
Craftmade
Brand Category:
Ceiling Fan
Brand Product :
52″ Ceiling Fan w/Blades & Light Kit
Shipping Method:
Ground
SKU:
CAV52ABZ5LK
UPC:
647881148027
Electrical and Operational Information
Dimmable:
Yes
Efficiency:
77.14
Lamping Category:
Incandescent
Lamping Features:
Edison Bulb: Yes / Primary Bulb Finish: Clear / Total Fixture Bulbs Included: 3
Lamping Included:
Bulbs Included
Lamping Type:
B10
Lead Wire Length:
54.00
Primary Number of Bulbs:
3
Socket:
E12
Total Number of Bulbs:
3
Voltage:
120
Wattage Max:
40.00
Dimensions and Measurements
Backplate/Canopy Extension:
2.44
Backplate/Canopy Height:
5.91
Backplate/Canopy Width:
5.91
Diameter:
52
Weight:
28.00
Width:
52
Fan Blade Information
Fan Blade Pitch:
14
Fan Blade Span:
52
Number of Fan Blades:
5
Fan Operational Information
Fan Features:
- Blade Status: Included / Blade Sweep Options: 52 / Blade Type: Fits Only / Reversible Blades: No / Blade Material: ABS / Blade Length: 21.97 / Blade Width: 5.83 / Blade Edge Shape: Radiused / Blade Tip: Picture Frame / Blade Features: Blades Included
- Motor Type: AC / Motor Speeds: 3 / Reverse Method: Slide Switch / Motor Diameter: 172 / Motor Height: 20 / Motor size combined: 172×20 / Motor Material: Silicon Steel / Housing Size: 13.39 / Housing Height: 6.73
- Energy Guide CFM: 4234 / Energy Guide Watts: 46 / Energy Guide CFM Watts: 92 / Energy Guide Est Yearly Energy Cost.: 13
- FTC Test report Mean CFM High: 5746.5
- CFM High Max: 5761 / CFM Low Max: 2528 / CFM Watt High Max: 80.49 / Watt High Max: 72.68 / Watt Low Max: 15.35 / Amps High Max: 0.61 / RPM High Max: 165 / RPM Low Max: 78
- RPM 1: 180 / RPM 2: 125 / RPM 3: 76
- AMPS (Hi Speed): 0.61
- Light Kit Adaptable: No / Light Kit Location: Downlight / Light kit options: Integrated Light Kit / Light kit features: Integrated Light Kit (3-40W Candelabra Bulbs Included)
- Control Status: Included / Control Types Included: Remote Control Wall Control / Control features: Universal Remote/Wall Control / Control Type: Wall or Remote Control
- Reverse Location: Upper Housing
Motor Wattage:
71.47
Unit Air Flow:
5512.95
Included Components
Light Kit Included:
Yes
Warranty and Specifications
Country of Origin:
China
Location Rating:
Suitable for Damp Locations
Prop 65:
Yes
UL Ratings:
ULus
Warranty:
Limited Lifetime
Additional Details
Chain Cord Features:
1x10in Downrods
Features:
- Product Height (Primary Downrod): 26.5Blade to ceiling Height (Primary Downrod): 16.5
- Dual Mount (Flat or Angled Ceiling)10″ Downrod (Included)Limited Lifetime Warranty52″ Blades in Aged Bronze (Included)Integrated Light Kit (3-40W Candelabra Bulbs Included)Universal Remote/Wall Control IncludedRemote DimmingSuitable for Damp Locations
- Mounting Location: Damp / Mounting Method: Dual Mount (Flat or Angled Ceiling) / Slope Mount: Yes / Up Down Mount Capabilty: No
- Room Size: Large rooms (up to 18 X 20)
- Glass/Shade Included: Yes
- Downrod Diameter: 0.5
- Glass/Shade Height: 5.91 x Glass/Shade Width: 10.44
- Glass/Shade Material: Glass
- Glass/Shade Shape: Bowl
- Standard, 3-Speed Reversible Motor
Glass Features:
Wavy Clear
Material:
ABS/Glass/Steel/Silicon Steel
Switch Features:
Remote
Shade Information
Shade Features:
Wavy Clear Glass
Product Documentation

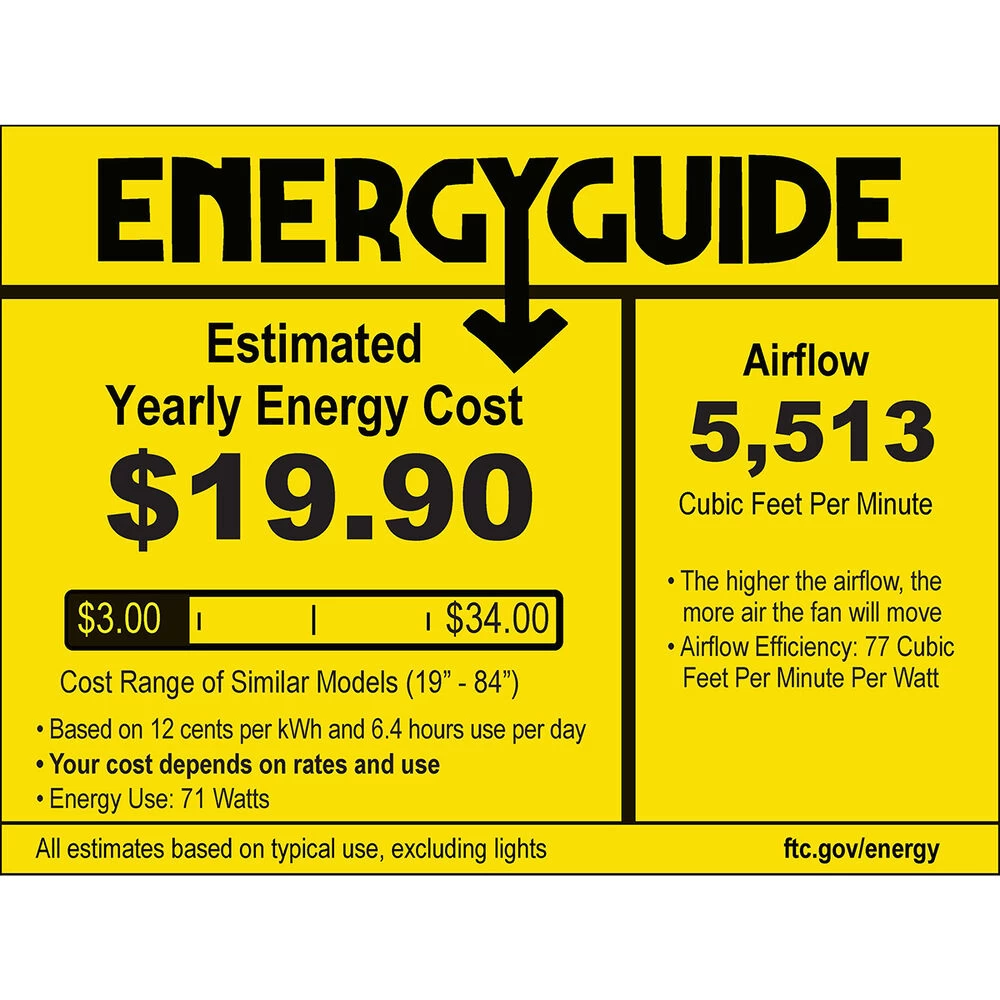

Energy Guide Label
