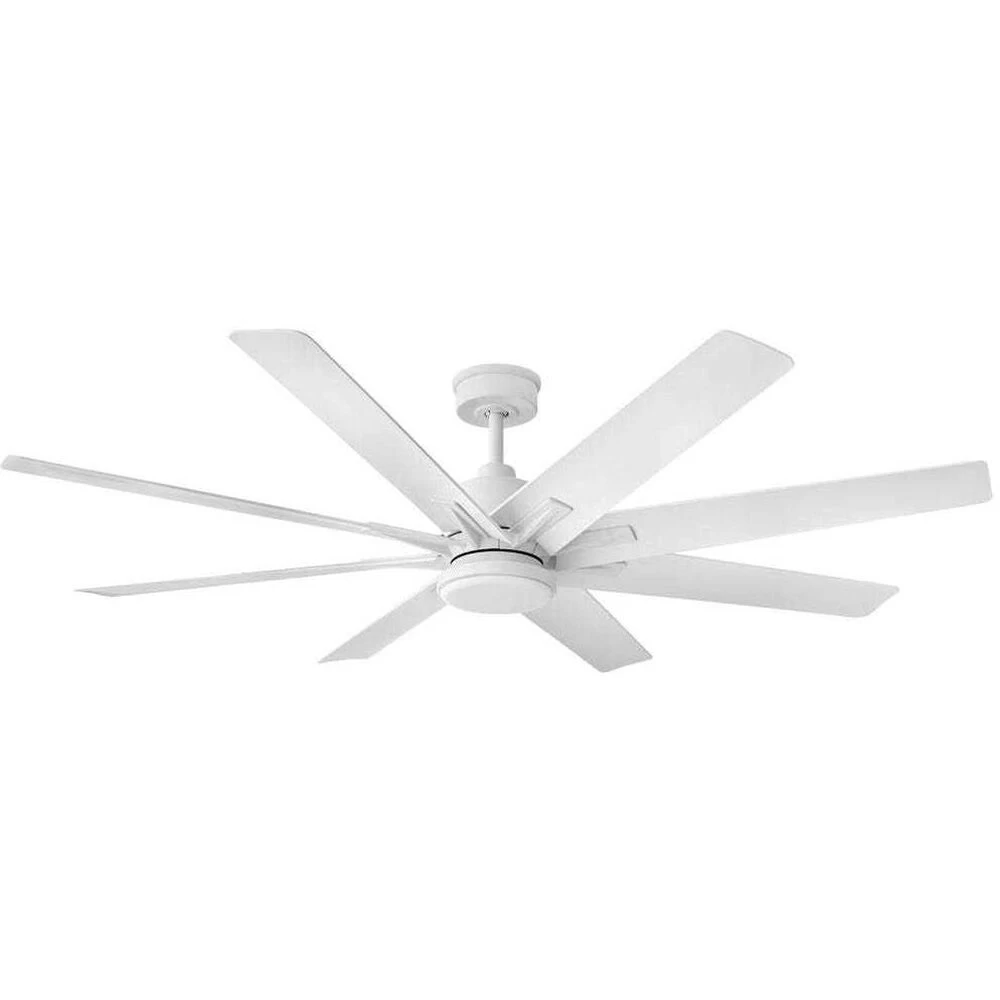

Everyone agrees. Concur’s sophisticated silhouette combines form and function to offer maximum performance in style. A timeless, transitional blade design is available in contemporary classic finish options, including Brushed Nickel, Matte Black, Metallic Matte Bronze, and Matte White. Concur comes equipped with LED and DC motor technology to deliver excellent energy efficiency. Designed for versatility, Concur is suitable for both indoor and outdoor spaces.
Brand
Hinkley
Category
Indoor Ceiling Fans
Collection
Concur
Finish
Various
Color
Whites
Product Information
Brand:
Hinkley
Brand Category:
Fan
Brand Product :
Concur 66″ LED Fan
Shipping Method:
Ground
SKU:
904566FMW-LWD
UPC:
640665023091
Electrical and Operational Information
Color Rendering Index:
90
Color Temperature:
3000K
Dimmable:
Yes
Efficiency:
268
Lamping Category:
LED
Lamping Features:
- Life Span: 50000
- Incandescent Equivlancy: 1 x 100w
Lamping Included:
Bulbs Included
Lamping Type:
Integrated LED
Lumens:
1320
Voltage:
120v
Wattage Max:
16.00
Dimensions and Measurements
Backplate/Canopy Extension:
2.5
Backplate/Canopy Height:
2.5
Backplate/Canopy Width:
6.5
Diameter:
66
Height:
16.5
Length:
66
Weight:
26.00
Width:
66
Fan Blade Information
Fan Blade Pitch:
14.00
Fan Blade Span:
66
Number of Fan Blades:
8
Fan Operational Information
Fan Features:
- Energycost High: 10
- Energycost Avg: 7
- Efficiency High: 268
- Efficiency Avg: 280
- Airflow High: 9496
- Airflow Avg: 6954
- Energyuse High: 35.4
- Energyuse Avg: 25
- Amps High: 0.54
- Amps Avg: 0.32
- RPMs High: 124
- RPMs Avg: 88
- Ceiling To Blade Height: 11.25
- Motor Name: DC 155×22
- Motor Type: DC
- Fan Speed: 6 Speed
- Reversing Control: Yes
- Single Power Switch: No
- Receiver Included: Yes
- Fan Control Included: Yes
- Blades Included: Yes
- Blade Options Available: No
- Blade Material: Composite
- Blades Reversible: No
- Light Kit Included Removeable: No
- Light Kit Adaptable: No
Motor Wattage:
35.4
Unit Air Flow:
9496
Included Components
Light Kit Included:
Yes
Warranty and Specifications
Country of Origin:
CHINA
Prop 65:
Yes
UL Ratings:
UL/C-US Wet Rated
Warranty:
LED components carry a 5-year limited warranty; Blades, controls, switches, capacitors and hardware carry a 1 year warranty; Motor carries a lifetime warranty
Additional Details
Chain Cord Features:
6″ Rod
Features:
- CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fan Control included, HIRO Control – 6 Speed ReversingMerging the best of traditional and modern elements, with a sophisticated and streamlined lookSuitable for use in wet (outdoor direct rain or sprinkler) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety StandardsWiFi compatibility with included fan controlThis item includes a 6″ down rod. Other various lengths of down rods are available and sold separately to customize the installation height.This item may be hung on a sloped ceilingPowered by a highly efficient and quiet DC motorNeutral perfection with a flawless white finish enhances designFans should be installed at a minimum of 7 feet from the floor
- Dimmable: Yes – CL Type Dimmer (SSL7A)
- Install Sloped Ceiling: Yes / Slope Degree: 20
- Operating Frequency: 60
- Wifi Control Optional: NoWifi Control Included: Yes
- Dual Mount: No
- FAN: DC Motor
- Fan Control included, 6 Spd HIRO:R
- FAN: 7ft from floor, FAN: Install Slope Ceiling
Glass Features:
White Frosted
Material:
Steel
Switch Features:
HIRO Control – 6 Speed Reversing
Product Documentation
Install Sheet
Spec Sheet Details
Specification Sheet
