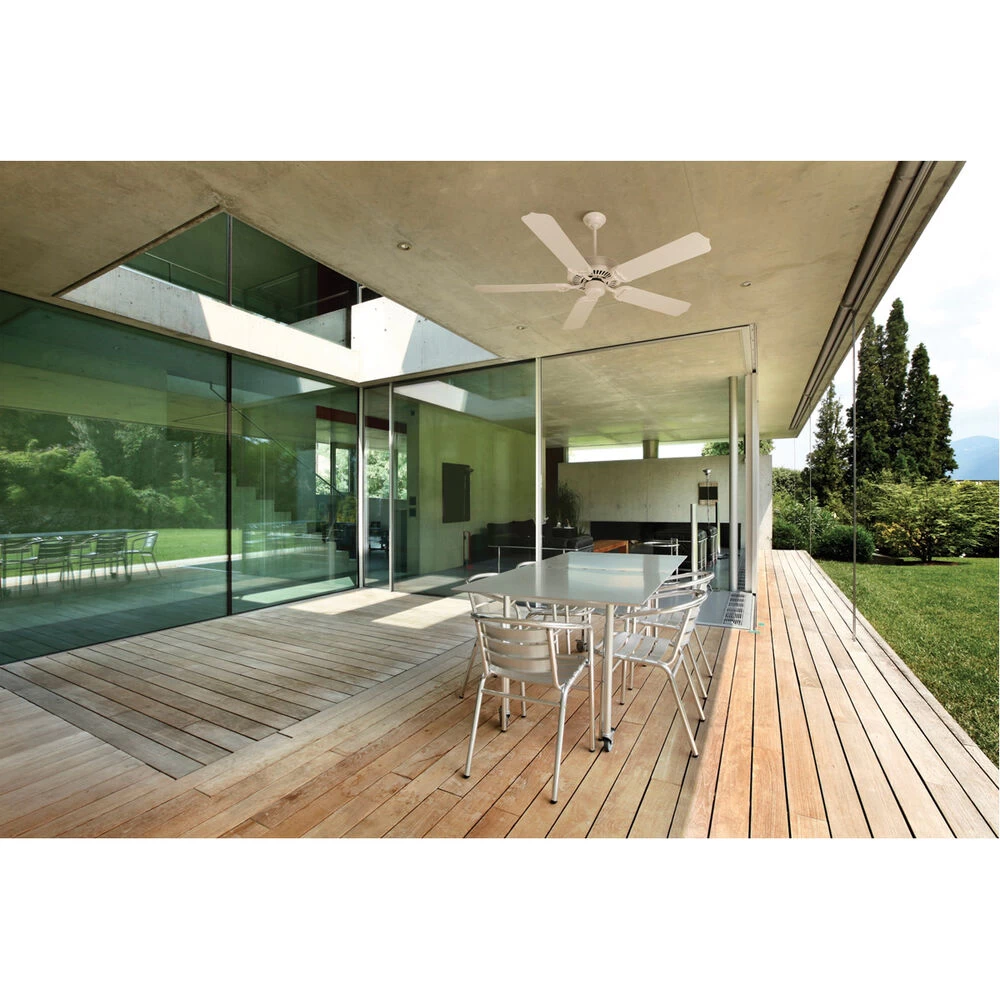

The traditional styled Porch Fan is a refreshing choice for damp locations from covered balcony to porch and patio.
Brand
Craftmade
Category
Outdoor Fans
Collection
Porch Fan
Finish
Various
Color
Whites
Product Information
Brand:
Craftmade
Brand Category:
Outdoor Ceiling Fan Kit
Shipping Method:
Ground
SKU:
K11241
UPC:
647881151706
Electrical and Operational Information
Color Rendering Index:
80
Color Temperature:
3000K
Dimmable:
Yes
Efficiency:
73.2
Lamping Category:
LED
Lamping Features:
Primary Bulb Initial Lumens: 750 / Primary Bulb Lumens: 750 / Primary Bulb Lumens per Watt: 83.33 / Total Fixture Bulbs Included: 2
Lamping Included:
Bulbs Included
Lamping Type:
A19
Lead Wire Length:
80.00
Primary Number of Bulbs:
2
Socket:
E26/Medium
Total Number of Bulbs:
2
Voltage:
120
Wattage Max:
9.00
Dimensions and Measurements
Backplate/Canopy Extension:
2.05
Backplate/Canopy Height:
5.12
Backplate/Canopy Width:
5.12
Diameter:
52
Weight:
16.84
Width:
52
Fan Blade Information
Fan Blade Pitch:
12
Fan Blade Span:
52
Number of Fan Blades:
5
Fan Operational Information
Fan Features:
Blade Status: Included / Blade Sweep Options: 44 / 52 / Blade Type: Type 3 / Reversible Blades: No / Blade Material: ABS / Blade Length: 20.59 / Blade Width: 5.67 / Blade Features: Outdoor Plus SeriesMotor Type: AC / Motor Speeds: 3 / Motor Diameter: 153 / Motor Height: 12 / Motor size combined: 153×12 / Motor Material: Silicon Steel / Housing Size: 11.5 / Housing Height: 6.46Energy Guide CFM: 3160 / Energy Guide Watts: 39 / Energy Guide CFM Watts: 81 / Energy Guide Est Yearly Energy Cost.: 11FTC Test report Mean CFM High: 4372.25CFM High Max: 4459.99 / CFM Low Max: 1797.76 / CFM Watt High Max: 71.06 / Watt High Max: 62.87 / Watt Low Max: 12.06 / Amps High Max: 0.52 / RPM High Max: 159 / RPM Low Max: 69RPM 1: 167 / RPM 2: 120 / RPM 3: 72AMPS (Hi Speed): 0.5Electricity Use: 64 WattsLight Kit Adaptable: Yes / Light Kit Location: Down / Light kit features: Outdoor Bowl Light KitControl Status: Optional / Control Types Included: Pull Chain / Compatible Control Types: UCI-2002-2 Remote & Wall ControlReverse Location: Switch Housing
Motor Wattage:
60.4
Unit Air Flow:
4421.3
Included Components
Light Kit Included:
Yes
Warranty and Specifications
Country of Origin:
China
Location Rating:
Suitable for Wet Locations
Prop 65:
Yes
UL Ratings:
cULus
Warranty:
Lifetime Limited on Motor, 1 year on accessories
Additional Details
Chain Cord Features:
1x6in,3in Downrods
Features:
- Glass/Shade Height: 7.75 x Glass/Shade Width: 10.75
- Dual Mount (Flat or Angled Ceiling)3″ and 6″ Downrods (Included)Limited Lifetime Warranty52″ Outdoor Plus Series Blades in Outdoor White (Included)Outdoor Bowl Light Kit (Included)Suitable for Damp Locations
- Product Height (Primary Downrod): 14.75Blade to ceiling Height (Primary Downrod): 13.07Product Height (Secondary Downrod): 10.77Blade to ceiling Height (Secondary Downrod): 9
- Glass/Shade Material: Glass
- Standard, 3-Speed Non-Reversible Motor
- Mounting Location: Damp / Mounting Method: Dual Mount (Flat or Angled Ceiling) / Slope Mount: Yes / Up Down Mount Capabilty: No
- Downrod Diameter: 0.5
- Glass/Shade Included: Yes
- Room Size: Large rooms (up to 18 X 20)
- Glass/Shade Shape: Bowl
Glass Features:
Alabaster
Material:
Steel/Silicon Steel
Switch Features:
Pull Chain
Shade Information
Shade Features:
Alabaster Glass
Product Documentation
Install Sheet
Energy Guide Label
