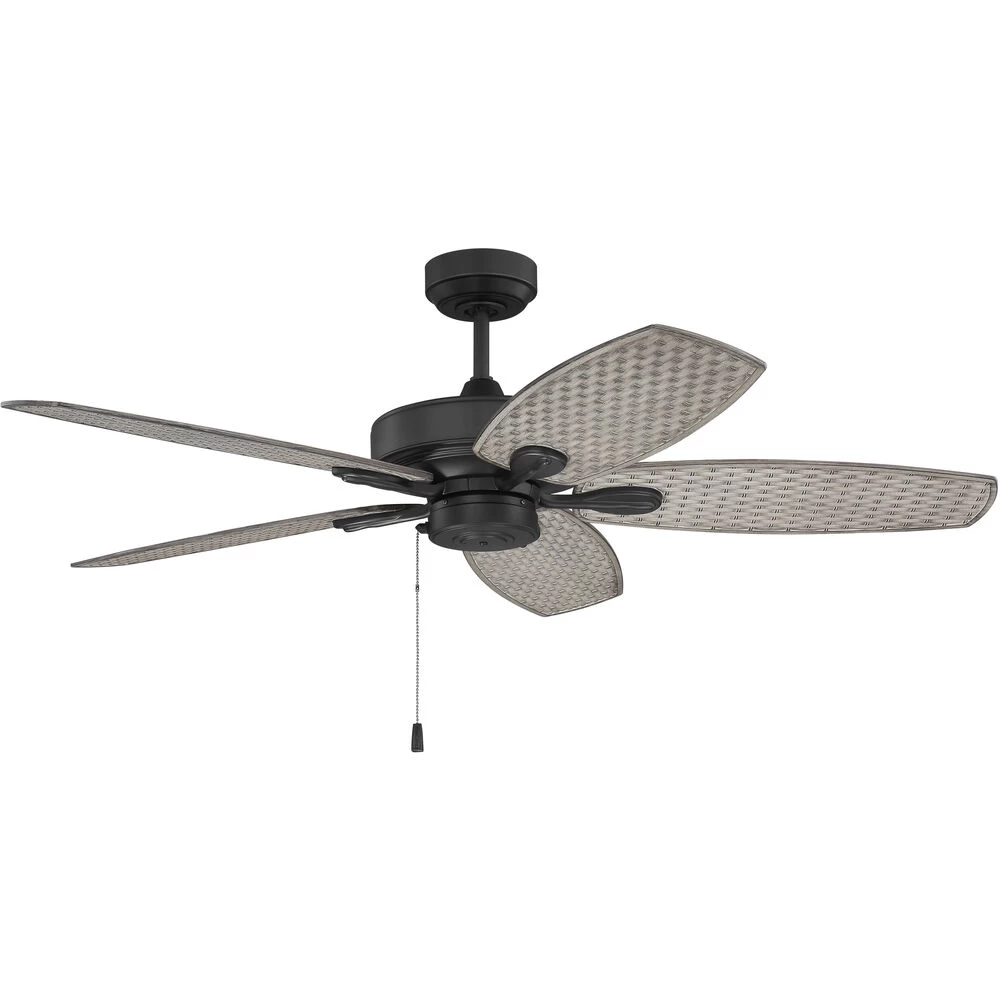

Complete your patio oasis with our Retreat 52″ ceiling fan. This wet rated outdoor fan featuring custom all weather blades in an enlarged woven pattern delivers great performance with the three speed, reversible motor built to withstand the elements. Light kit and remote control adaptable.
Brand
Craftmade
Category
Outdoor Fans
Collection
Retreat
Finish
Various
Color
Blacks
Product Information
Brand:
Craftmade
Brand Category:
Indoor/Outdoor Ceiling Fan
Brand Product :
52″ Ceiling Fan w/Blades
Shipping Method:
Ground
SKU:
RET52FB5
UPC:
647881211028
Electrical and Operational Information
Lamping Included:
Bulbs Not Included
Lead Wire Length:
80.00
Voltage:
120
Dimensions and Measurements
Backplate/Canopy Extension:
2.34
Backplate/Canopy Height:
5.83
Backplate/Canopy Width:
5.83
Diameter:
52
Weight:
22.71
Width:
52
Fan Blade Information
Fan Blade Pitch:
13
Fan Blade Span:
52
Number of Fan Blades:
5
Fan Operational Information
Fan Features:
- Blade Status: Included / Blade Type: Fits only / Reversible Blades: No / Blade Material: ABS / Blade Length: 21.4 / Blade Width: 7.6 / Blade Width Max: 7.6 / Blade Tip: Semi Square
- Motor Type: AC / Motor Speeds: 3 / Reverse Method: Slide Switch / Motor Diameter: 188 / Motor Height: 22 / Motor size combined: 188×22 / Motor Material: Silicon Steel / Housing Size: 11.5 / Housing Height: 3.94
- Energy Guide CFM: 3624 / Energy Guide Watts: 44 / Energy Guide CFM Watts: 82 / Energy Guide Est Yearly Energy Cost.: 12
- FTC Test report Mean CFM High: 5088.58
- CFM High Max: 5112.24 / CFM Low Max: 1976.66 / CFM Watt High Max: 71.22 / Watt High Max: 71.78 / Watt Low Max: 13.29 / Amps High Max: 0.6 / RPM High Max: 165 / RPM Low Max: 66
- Light Kit Adaptable: Yes / Light Kit Location: Downlight / Light kit features: Light Kit Adaptable (Sold Separately)
- Control Status: Optional / Control Types Included: Pull Chain / Compatible Control Types: UCI-2000-2 Remote and Wall Control
Included Components
Light Kit Included:
No
Warranty and Specifications
Country of Origin:
China
Location Rating:
Suitable for Wet Locations
Prop 65:
Yes
UL Ratings:
cULus Wet
Warranty:
Limited Lifetime Warranty
Additional Details
Chain Cord Features:
1×6.5in Downrods
Features:
- Product Height (Primary Downrod): 12.7Blade to ceiling Height (Primary Downrod): 10
- Light Kit Adaptable (Optional)Remote and Wall Control Adaptable(UCI-2000-2) (Sold Separately)Suitable for Wet Locations
- Mounting Location: Wet / Mounting Method: Dual Mount (Flat or Angled Ceiling) / Slope Mount: Yes
- Room Size: Large rooms (up to 18 X 20)
- Heavy-Duty, 3 Speed Reversible Motor
- Downrod Diameter: 0.5
- Dual Mount (Flat or angled ceiling)
- 6.5″ Downrod (Included)
- Crystal Components: No
- Custom ABS Blades Included
Material:
ABS/Steel
Switch Features:
Pull Chain
