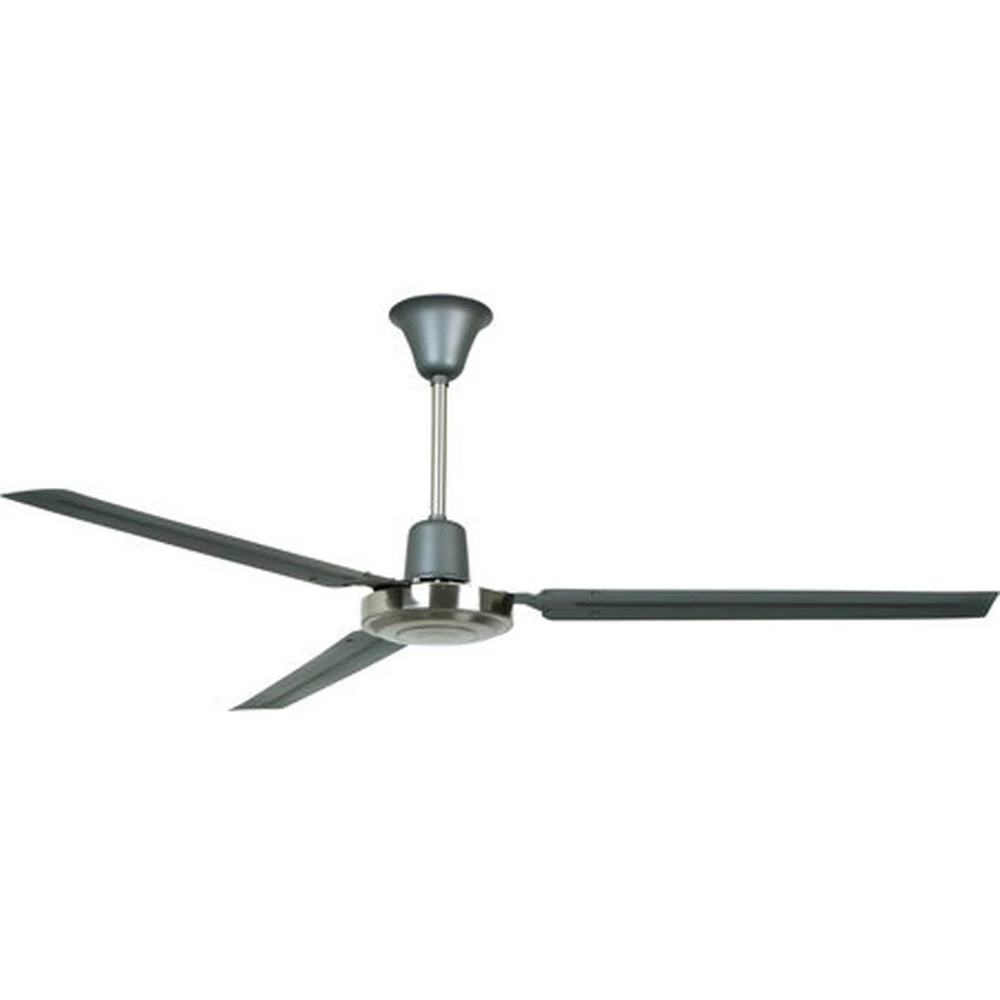

With its slender profile and sleek appearance the industrial-chic Utility is a striking example of minimalist design. The five-speed motor and three gracefully proportioned blades move a surprising amount of cooling air effectively and efficiently.
Brand
Craftmade
Category
Indoor Ceiling Fans
Collection
Utility
Finish
Titanium and Brushed Polished Nickel
Color
Silvers/Grays
Product Information
Brand:
Craftmade
Brand Category:
Ceiling Fan
Brand Product :
56″ Ceiling Fan w/Blades
Shipping Method:
Ground
SKU:
UT56TBNK3M
UPC:
080629115644
Electrical and Operational Information
Efficiency:
52.85
Lamping Included:
Bulbs Not Included
Lead Wire Length:
24.00
Voltage:
120
Dimensions and Measurements
Backplate/Canopy Extension:
4.09
Backplate/Canopy Height:
5.75
Backplate/Canopy Width:
5.75
Diameter:
56
Weight:
13.44
Width:
56
Fan Blade Information
Fan Blade Pitch:
9
Fan Blade Span:
56
Number of Fan Blades:
3
Fan Operational Information
Fan Features:
- Blade Status: Included / Blade Sweep Options: 56 / Blade Type: Fits Only / Reversible Blades: No / Blade Material: Steel / Blade Length: 22.84 / Blade Width: 4.96 / Blade Features: Blades Included
- Motor Type: AC / Motor Speeds: 5 / Motor Diameter: 170 / Motor Height: 12 / Motor size combined: 170×12 / Motor Material: Cold Rolled Steel / Housing Size: 7.87 / Housing Height: 6.6
- Energy Guide CFM: 4201 / Energy Guide Watts: 53 / Energy Guide CFM Watts: 79 / Energy Guide Est Yearly Energy Cost.: 15
- FTC Test report Mean CFM High: 4985.22
- CFM High Max: 5033.95 / CFM Low Max: 3347.47 / CFM Watt High Max: 75.25 / Watt High Max: 66.9 / Watt Low Max: 38.1 / Amps High Max: 0.55 / RPM High Max: 182 / RPM Low Max: 124
- RPM 1: 276 / RPM 2: 267 / RPM 3: 263
- AMPS (Hi Speed): 0.61
- Light Kit Adaptable: No / Light kit options: Not Light Kit Adaptable
- Control Status: Included / Control Types Included: Wall Control / Control features: 5-Speed Fan Control and On/Off Control / Control Type: Wall Control
Motor Wattage:
72.9
Unit Air Flow:
3852.44
Included Components
Light Kit Included:
No
Warranty and Specifications
Country of Origin:
China
Prop 65:
Yes
UL Ratings:
ULus
Warranty:
Limited Lifetime
Additional Details
Chain Cord Features:
1x12in Downrods
Features:
- Product Height (Primary Downrod): 18.07Blade to ceiling Height (Primary Downrod): 16.02
- Room Size: Great rooms (larger than 18 X 20)
- Heavy-Duty, 5-Speed Motor
- Limited Lifetime Warranty
- Dual Mount (Flat or Angled Ceiling)
- Glass/Shade Included: No
- 12″ Downrod (Included)
- Downrod Diameter: 0.5
- Mounting Location: Indoor / Mounting Method: Dual Mount (Flat or Angled Ceiling) / Slope Mount: Yes / Up Down Mount Capabilty: No
- 56″ Blades in Titanium (Included)Blades Must be Mounted at Least 10′ Above the Floor for Safety5-Speed Fan Control and On/Off Control Included)Not Light Kit Adaptable
Material:
Steel/Cold rolled Steel
Switch Features:
Wall Control
Product Documentation

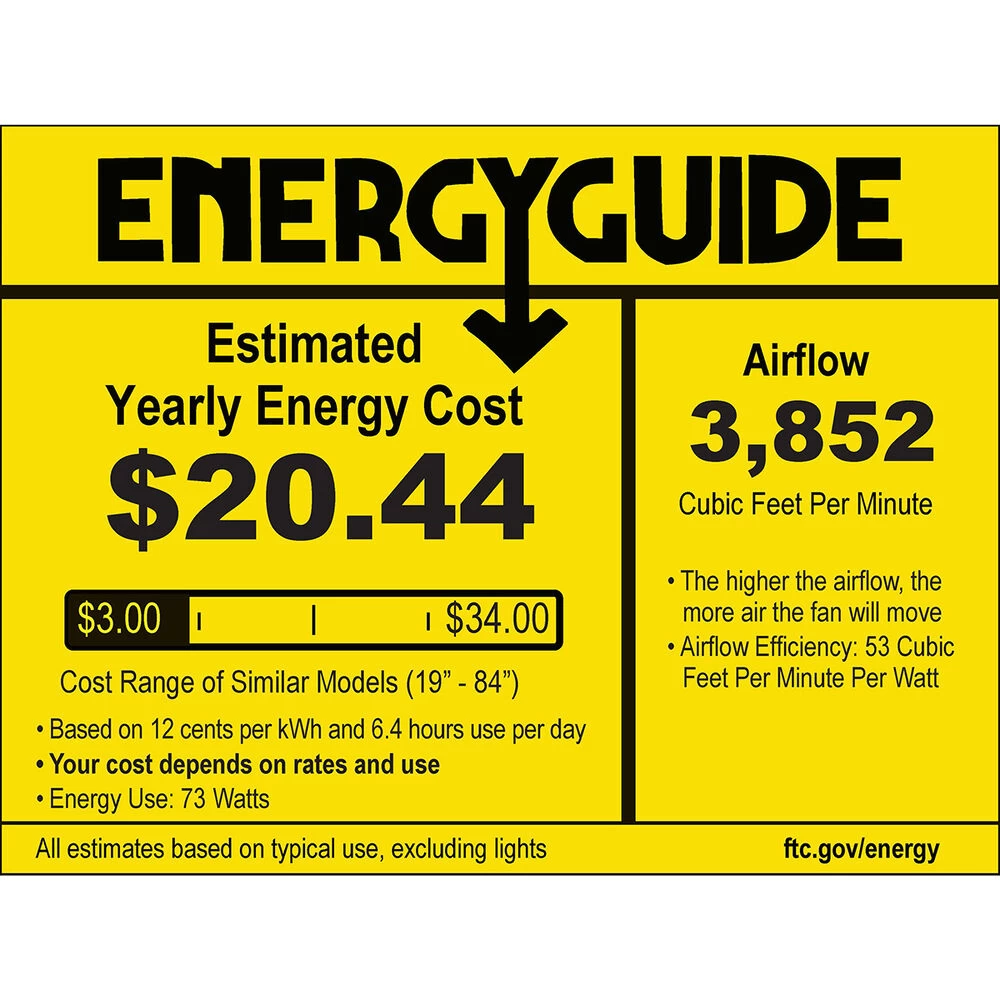

Energy Guide Label
